Model No.: Hydraulic Bucking Unit

Production Capacity: 10

Delivery Date: 35 Days

Means of Transport: Ocean,Land,Air

Packing: Metal Box

Hydraulic Bucking Unit: Hydraulic Bucking Unit

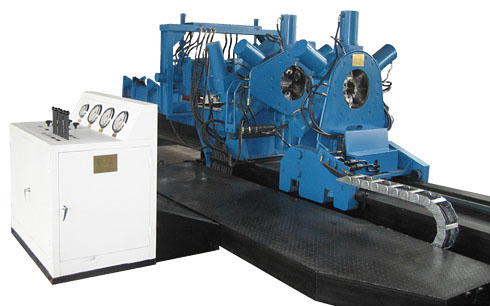

TIANHE YXQ16-II Make Up & Break Out Machine is a self-contained hydraulic drive unit which is designed for fast and accurately make up or break out th

TIANHE YXQ16-II Make Up & Break Out Machine is a self-contained hydraulic drive unit which is designed for fast and accurately make up or break out the threaded connections of tubular tools and motors in either workshop or oil field location.

FEATURES:

Patent quick rotation unit;

2 7/8" to 15 1/4" Diameter Capacity;

Synchronized Clamp Cylinders in Movable Chuck and Shock Screwing Chuck;

Specifications-YXQ16-II MAKE UP & BREAK OUT MACHINE

Model	YXQ16-II-320	YXQ16-II-400
Chucking Capacity	73mm~340mm	73mm~390mm
Motor power	15kw	15kw
Motor speed	1500rpm	1500rpm
Max. make-up torque	150KN.m	150KN.m
Max break-out torque	180KN.m	180KN.m
Stroke for push/pull cylinder	1500mm	1500mm
Max tons for push/pull cylinder	150KN	150KN
Quick Operation torque	2.5～4.0KN.m	2.5～4.0KN.m

Construction

The standard configuration of TIANHE YXQ16-II make up & break out machine consists of a bed that complete with movable chuck, shock screwing chuck, quick rotation unit, a hydraulic Console Unit and a power station.

Hydraulic Push/Pull Cylinder, Feeding unit, Touch screen type torque recorder are available on request.

360oContinuous Rotation Headstock is optional.

Standard Configuration

Adjustable Tong	Weight	1500kg	1450kg
Shock screwing Tong	Weight	1300kg	1250kg
Quick Rotary unit	Weight	1000kg	1000kg
Bed	Weight	3000kg	3000kg
Hydraulic Console Unit	Weight	300kg	300kg
Power station	Weight	300kg	300kg
